403803 SKF cr wheel seal

✖

Home>Products>Cr Wheel Seal>403803 SKF cr wheel seal image

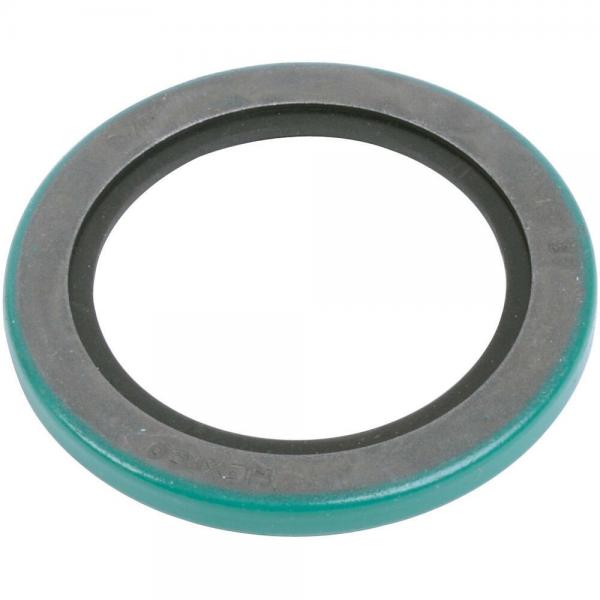

403803 SKF cr wheel seal image

403803 SKF cr wheel seal Systems

Weight / LBS:0.104
Inch - Metric:Metric
Nominal Width:0.315 Inch / 8 Millimeter
Spring Loaded:Yes
Keyword String:Lip
Other Features:Small / Bore-Tite on OD / Without Inner Case
Shaft Diameter:1.772 Inch / 45 Millimeter
Long Description:45MM Shaft Dia; 75MM Housing Bore; 8MM Nominal Width; Viton Lip; Solid Seal; 8MM Actual Width; Spring Loaded; 1 Sealing Lips; Carbon Steel Garter Lip Retainer; Steel Case Construction; CRW1 Seal
Seal Design Code:CRW1
Case Construction:Steel
Weight / Kilogram:0.047
Generic Design Code:C_R_CRW1
Solid or Split Seal:Solid
Harmonized Tariff Code:4016.93.50.20
Manufacturer Item Number:45X75X8 CRW1 V
